Metel Industries Supply quality fire protection pump packages and the pumps are UL listed and manufactured to NFPA standards. Calpeda –Metel End suction pumps are approved from 25 GPM to 500 GPM, with pressures from 82 psi to 124 psi .Fire pump sets are available in different sizes and all based on NFPA requirements.

MIL assembles high quality, low-emission diesel generator sets with Daewoo engines / Perkins / Cummins and Marelli / Mecc Alte / ABB / Leroy Sommer / Stamford alternators to cater to the market with a competitive price to the clients. The generators build with captive as well as stand-by power with manual, semi automatic and automatic control panels, with sound attenuated units packaged at our factory. The electric control panels are manufactured and customized by MIL to suit customer requirement.

MIL offers a complete range of products and services, supporting clients from concept to completion. We offer affordable and extensive standard products.

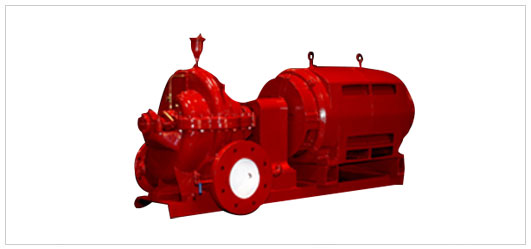

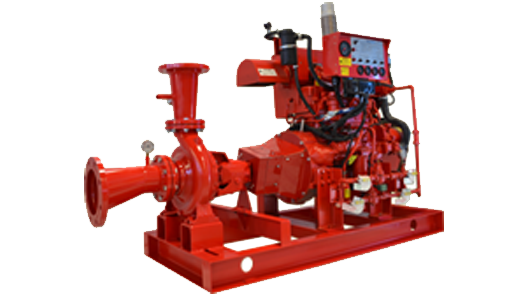

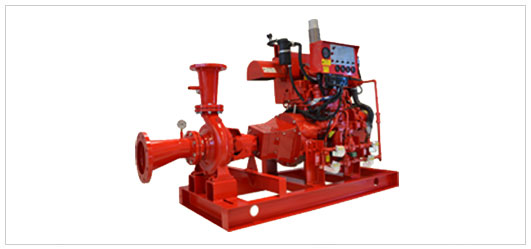

Calpeda-Metel UL Listed FIRE PUMP

  • Calpeda – Metel UL listed fire pump set includes diesel driven fire pump, Electric driven fire pump, Electric driven Jockey pump, Electric motor control panel, Diesel engine control panel and Jockey control panel, Flow meter, pressure Gauges. Pumps are Dubai and Qatar civil defense approved.
  • Range :
  • Flow : 25 US GPM to 500 US GPM
  • Head : 82 PSI to 132 PSI.

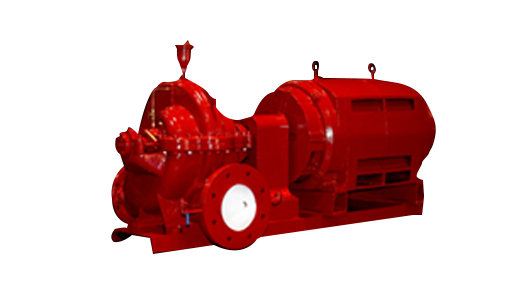

EBITT UL Listed FIRE PUMP

  • EBITT UL listed fire pump set includes diesel driven fire pump , Electric driven fire pump ,Electric driven Jockey pump ,Electric motor control panel , Diesel engine control panel and Jockey control panel , Flow meter, pressure Gauges.
  • Flow : 200 US GPM to 2000 US GPM
  • Head : 87 PSI to 190 PSI.
  • Centrifugal Fire Pumps, End Suction and Centrifugal Fire Pumps, Split Case

Rated Capacity GPM Size In. Model Dsg Rated Net pressure Range psi Approx Speed RPM Max Working Pressure psi
200 2x3 N 50/260 99-138 3000 217
250 2x3 N 50/260 95-135 3000 217
300 2.5x4 N 65/260 92-139 3000 232
400 2.5x4 N 65/260 90-138 3000 232
450 2.5x4 N 65/260 87-135 3000 232
450 3x5 N 80/250 101-146 3000 203
500 3x5 N 80/250 99-146 3000 203
50 1.2x2 N 32/250 102-145 3000 204
100 1.2x2 N 32/250 101-142 3000 204
150 1.2x2 N 32/250 97-137 3000 204
500 3x4 N 80/315 152-234 3000 270
500 4x5 N 100/315 144-213 3000 247
750 4x5 N 100/315 137-210 3000 247
750 4x5 N 100/250 79-142 3000 189
1000 4x5 N 100/250 71-140 3000 189
750 5x6 N 125/315 139-222 3000 260
1250 8x6 N 150/315 122-204 3000 246
Fire pumps, Single stage
Rated Capacity GPM Size In. Model Dsg Rated Net pressure Range psi Approx Speed RPM Max Working Pressure psi
500 4x6 SCP 100/250 112-167 3000 232
750 4x6 SCP 100/250 106-167 3000 232
1000 4x6 SCP 100/250 98-162 3000 232
1000 5x8 SCP 125/300 110-190 3000 290
1250 4x6 SCP 125/300 107-189 3000 290
1500 5x8 SCP 125/300 101-185 3000 290
2000 6x10 SCP4 150/630 124-222 1500 246

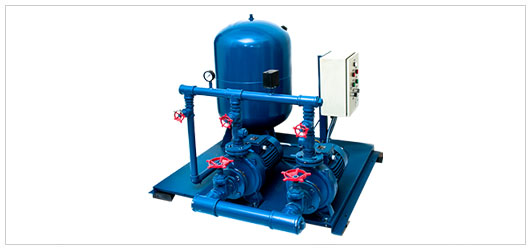

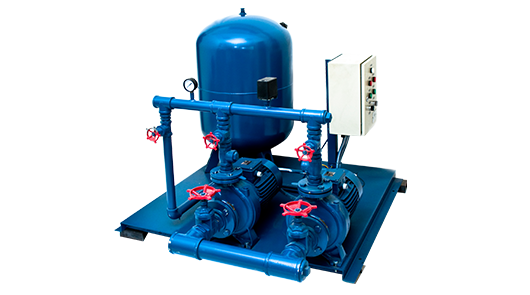

Booster Water Pumps

  • Booster pumps sets with 2 or more pumps in parallel, designed and built to meet the most common requirements in terms of water pressure maintenance in residential, commercial, industrial and agricultural installations in a reliable manner. Booster pumps can be designed to function duty, stand-by or assist mode. The sets are available with PRESSURE vessels fitted to the discharge manifold .Control panels for the booster pumps will be designed as per customer requirements.
  • CAST IRON CONSTRUCTION PUMPS WITH GALVANISED IRON/S.S/CU MANIFOLDS
  • STAINLESS STEEL CONTRUCTION PUMPS WITH GALVANISED IRON/S.S/CU MANIFOLDS

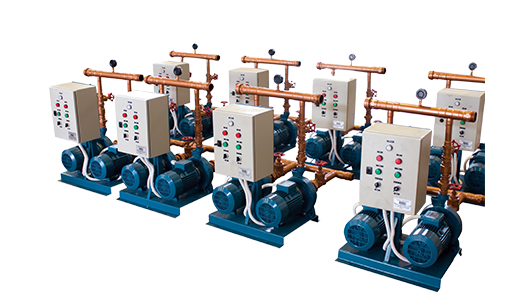

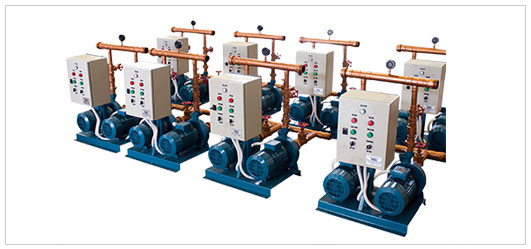

Transfer water pumps

  • Transfer pumps sets with 2 or more pumps in parallel, designed and built to meet the most common requirements in terms of transfer of water in residential, commercial, industrial and agricultural installations in a reliable manner. Transfer pumps can be designed to function on duty, stand-by or assist mode. The sets are available with PRESSURE vessels fitted to the discharge manifold .Control panels for the booster pumps will be designed as per customer requirements.
  • CAST IRON CONSTRUCTION PUMPS WITH GALVANISED IRON/S.S/CU MANIFOLDS
  • STAINLESS STEEL CONTRUCTION PUMPS WITH GALVANISED IRON/S.S/CU MANIFOLDS

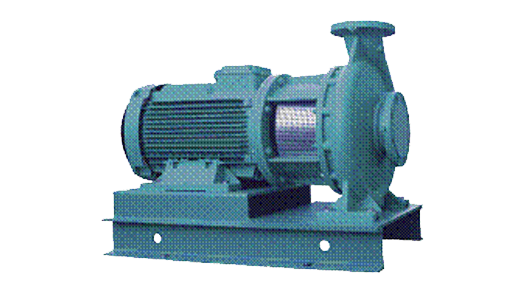

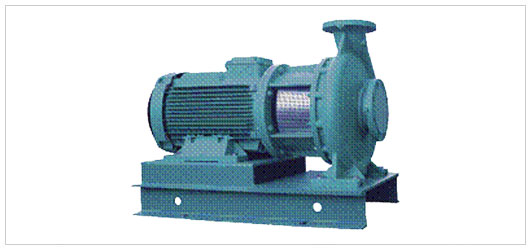

Chiller pump sets / Single centrifugal water pump sets

  • The pump and the motor shall be assembled on a common base frame using flexible coupling.

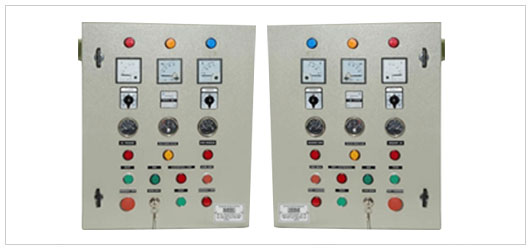

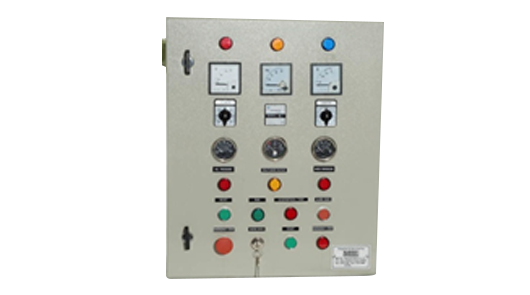

Variable Frequency Control Panel For Pumps

  • VFD Control panels can be designed as per the customer water requirements.

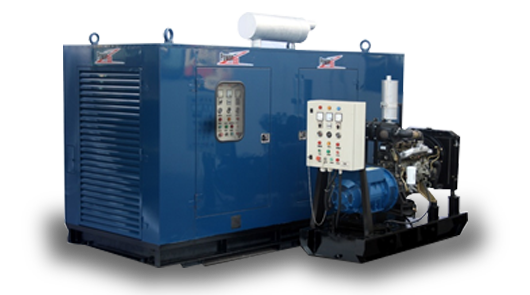

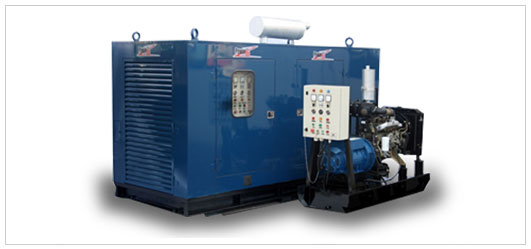

Diesel Generator

  • Diesel generator sets with Daewoo engines / Perkins / Cummins and Marelli / Mecc Alte / ABB / LEROY SOMMER / STAMFORD alternators.

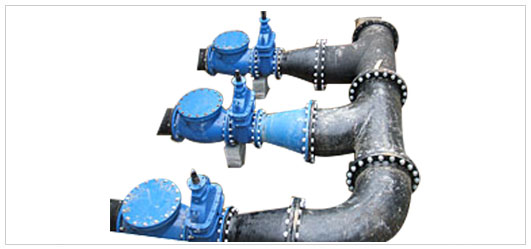

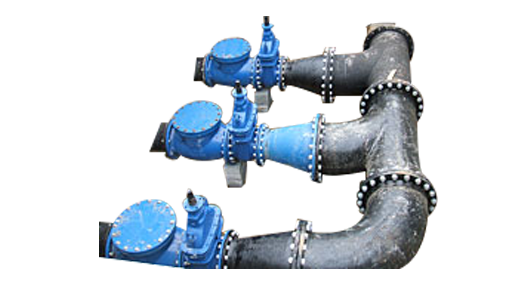

Sewage Pumping System

  • We offer complete solution for the sewage pumping stations with installation, commissioning with control panels, guide rails and chains.
